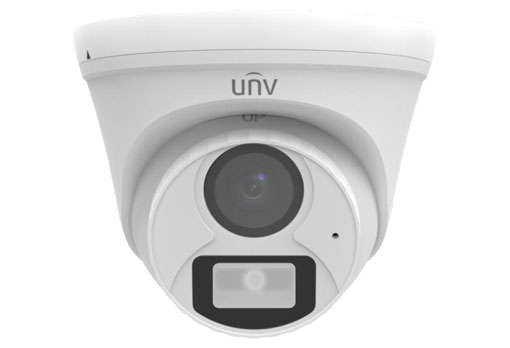

Caméra analogique Turret 5MP Colour hunter hd ficed eyeball

UAC-T115-AF28

Camera

Max Resolution

5 MP

Sensor Size

1/2.7" CMOS

Min. Illumination

0.02 lux (F2.0, AGC ON)
0 lux (IR ON)

Lens

Focus

2.8 mm

Lens Mount

M12

Angle of View (H)

102.2°

Angle of View (V)

53.9°

Angle of View (D)

124.8°

Illuminator

Illuminator Number

One IR illuminator

Illumination Distance

20m

Lifetime

≥ 60000 hours

Video

Resolution

5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)

Frame Rate

TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s


Exposure Mode

Four modes: Global (default), BLC, HLC, DWDR

Day/Night

Three modes: Auto (default), Day, Night

Digital Noise Reduction

2D

White Balance

Two modes: Auto (default), Manual

WDR

DWDR

Smart IR

Support

Flip

Supports 180°horizontal flip, 180°vertical flip

Digital Defog

N/A

Audio

Built-in Mic

Support

Camera Audio

TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps

Interface

Power Interface

5.5 mm Power Interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS

Operating Environment

Temperature

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)

Humidity

≤ 95% RH (non-condensing)

Surge Protection

4kV for power&4kV for video output interfaces

General

Power

DC 12 V ± 25%

Power Consumption

MAX 3.3W

Mount

Wall Mount, Pole Mount, Corner Mount, Pendant Mount

Dimensions

Φ118mm*96mm (diameter*height)

Material

Plastic

Weight

183g(0.40lb)

OSD Menu Language

11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)

Environment

CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)
